SILICONE MEMBRANE
Release time:2017-06-19 11:33:57 | Browse times:

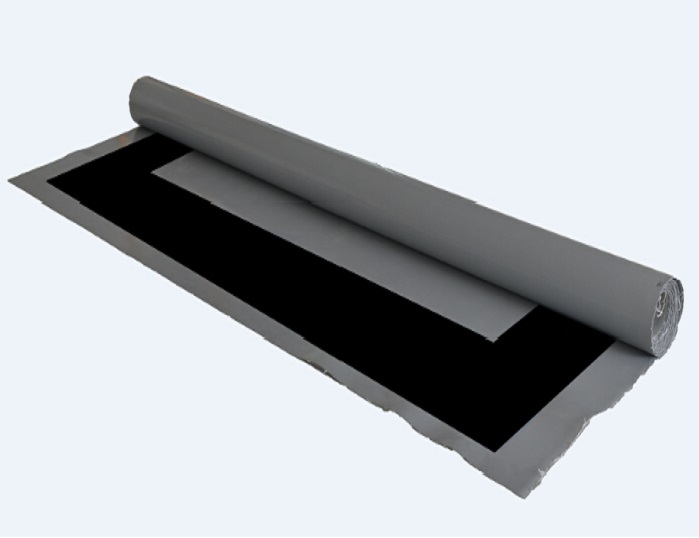

Silicone Membrane For Solar Module Laminator





Based on our powerful international sales network,First Aluminum also exports Silicon Rubber Sheet for our sister companies.

INTRODUCTION:

FA brand silicon membrane uses the German Wagga high quality raw materials, and with foreign professional companies for technical cooperation, the use of advanced technology and special equipment(large drum sulfuration machine)the development of the company's existing large Peng type sulfur type units 4 units, including 2011 years the introduction of a drum diameter of 2.5 meters of Dlywood production line, the largest width of 4.2 meters without splice. Company daily rubber membrance production reached 1000 square meters.
FA brand rubber membrane a good Surface finish, high stability, uniformly good reliability, long service life. Widely used in solar laminator, wooden doors, glass industry.
FA brand modified silicon membrane is in the original silicon rubber based on improved, with the product, and the use of automatic continuous large oven two vulcanization, so that the membrance in small molecules and odors can be fully decomposed volatiles, and fully guarantee the plate smoothness. Modified silica gel silica gel plate not only has high temperature resistance,but also resistant to EVA, with high temperature, high strength and long service life.

FEATURES

Heat-resistant, high elasticity, special surface property (no adhesion) and physiological inertia, EVA resistant, solvent resistant, anti-aging, anti-corrosive, non-polluting

APPLICATIONS

It is used for solar module laminators.

TECHNICAL DATA SHEETS

MDDEL

FA4000

FA6000

FA8000

Hardness(Shore A)

50-70±2

50-70±2

50-70±2

Tensile Strength  Mpa

12

12.5

13

Tearing Strength  N/mm

48

50

50

Resistant to EVA

Midium

Strong

Very Strong

Normal Operational Life(TIMES)

4000

6000

8000

Thickness

3-5mm

3-5mm

3-5mm

Width

2-4.2m

2-4.2m

2-4.2m

Length

unlimited

unlimited

unlimited

Remarks

1.Maximum width can be 3200mm seamless, the world’s originated technology.
2.Special specifications can be customized.
3.Silicone rubber sealing strip for laminator and high temperature resistant Teflon cloth and other accessories are also available.
